KBK RAIL SYSTEM

KBK RAIL SYSTEM

KBK Rail System is designed and manufactured to operate with only manual push pull force. System has specialized bearing and wheels which allow vertically zero maintenance and Zero Operational and NO RUNNING COST. System can be easily modified like cover higher area, adding new station or change overall layout of system.



    Features and Advantages

  1. High reliability, Stability and good aesthetic appearance.
  2. Modular design of various elements like Truss, Trolley, Runway Rail, Bridge (Cross ) Rail, hanger Kits etc
  3. Easy installation, Light weight assembly and efficient layouts of material movement
  4. Free from power utilisation for material movements
  5. Use of different lifting devices to suit the application
yoshida

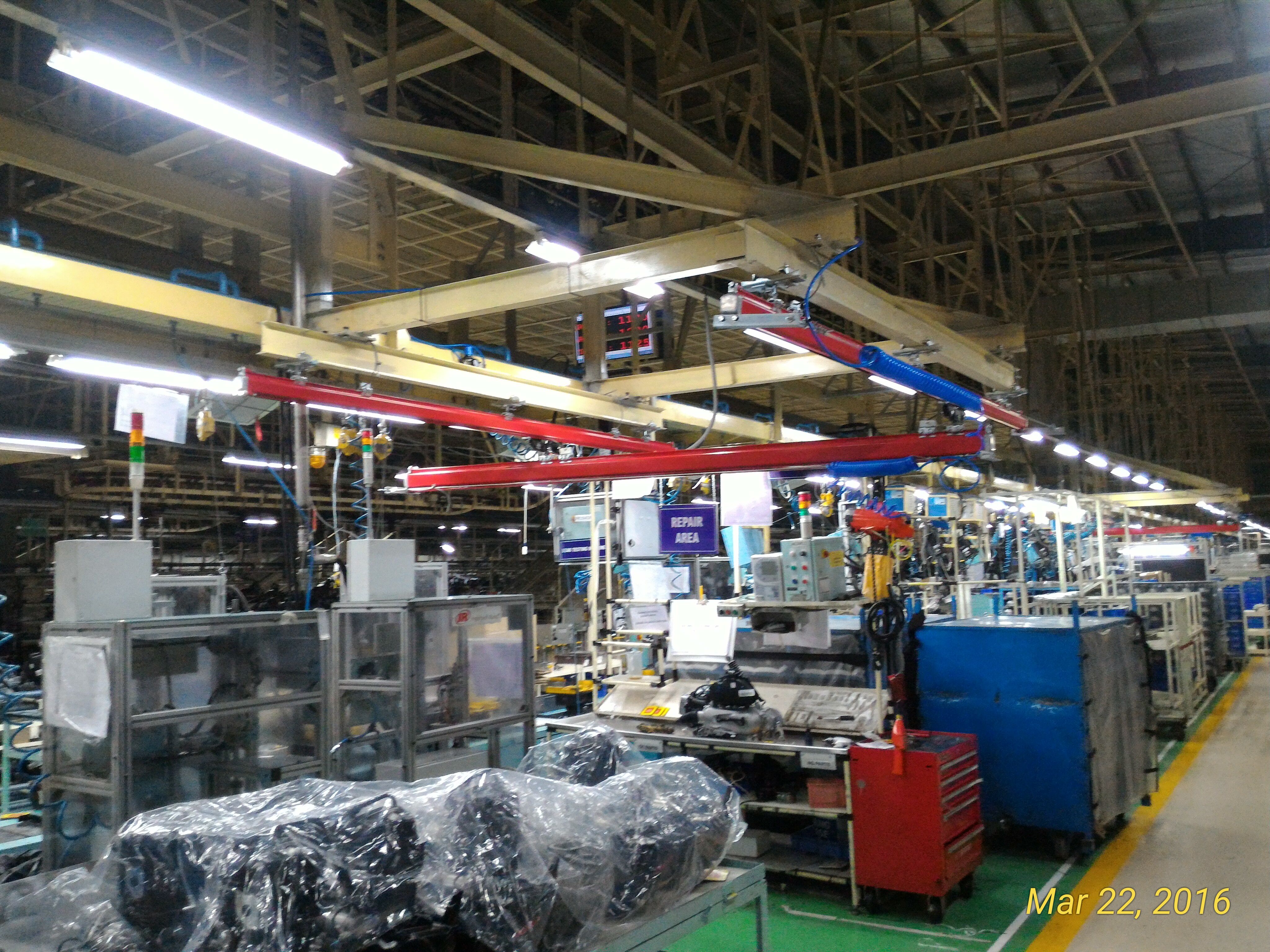

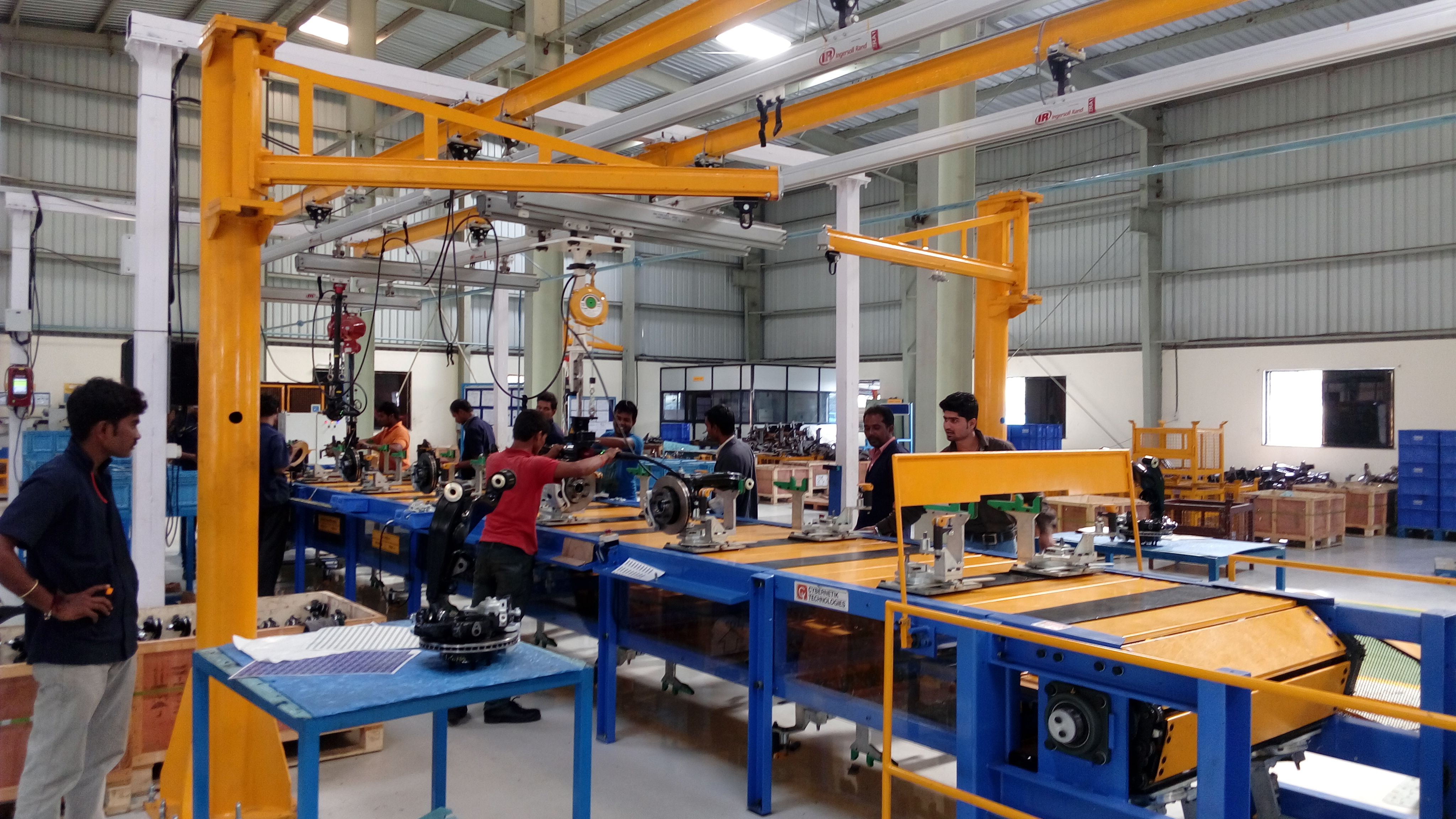

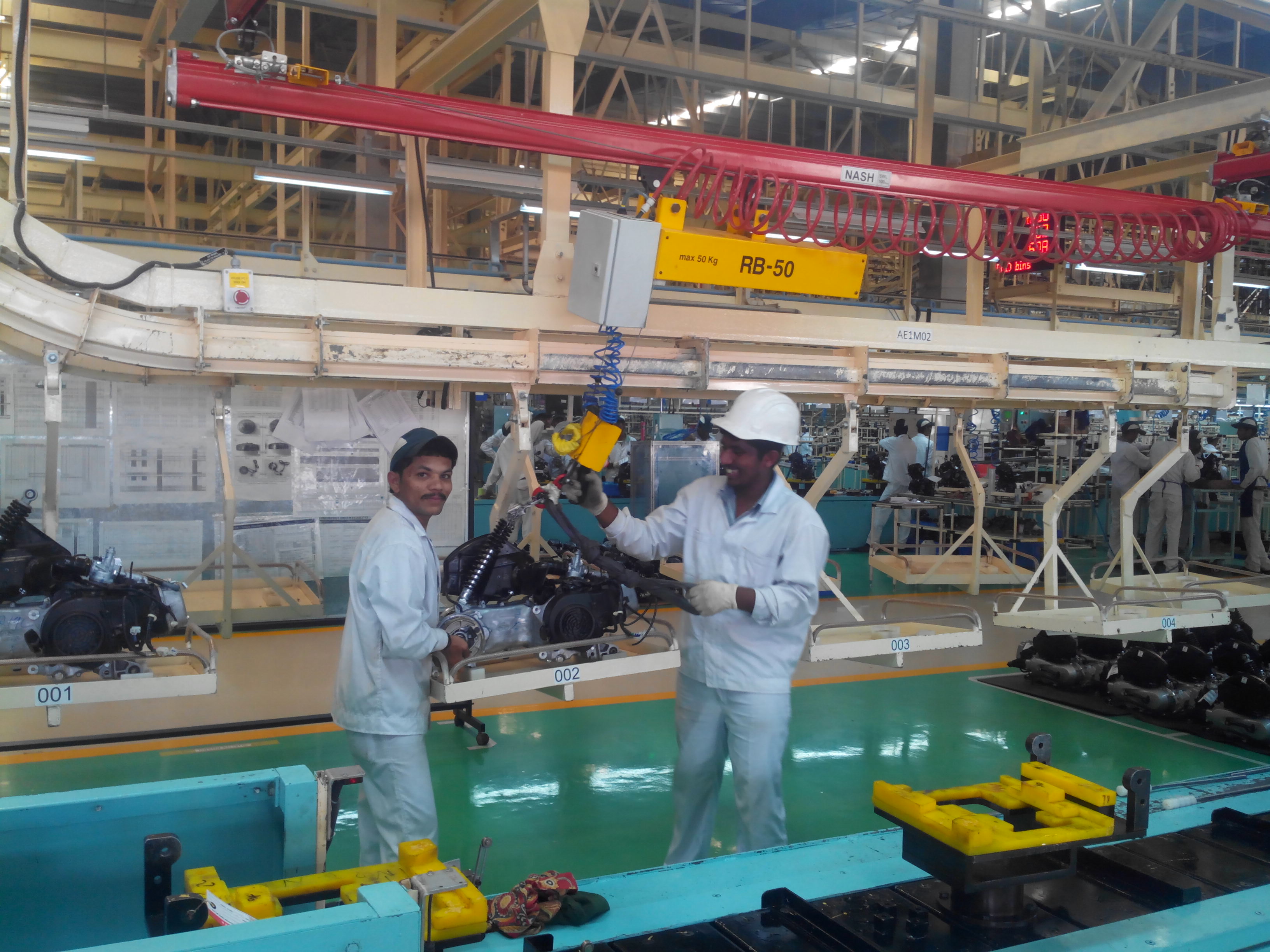

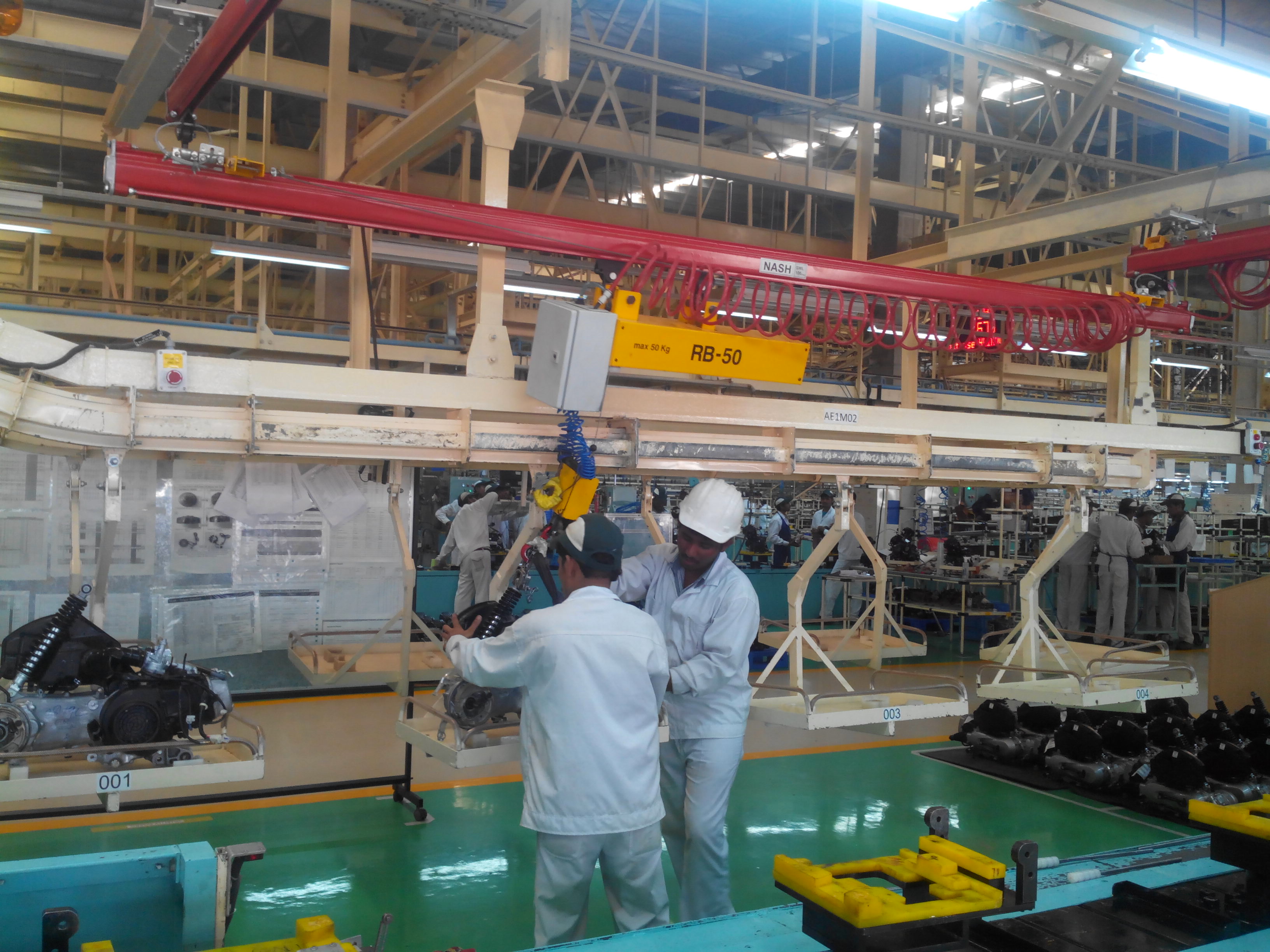

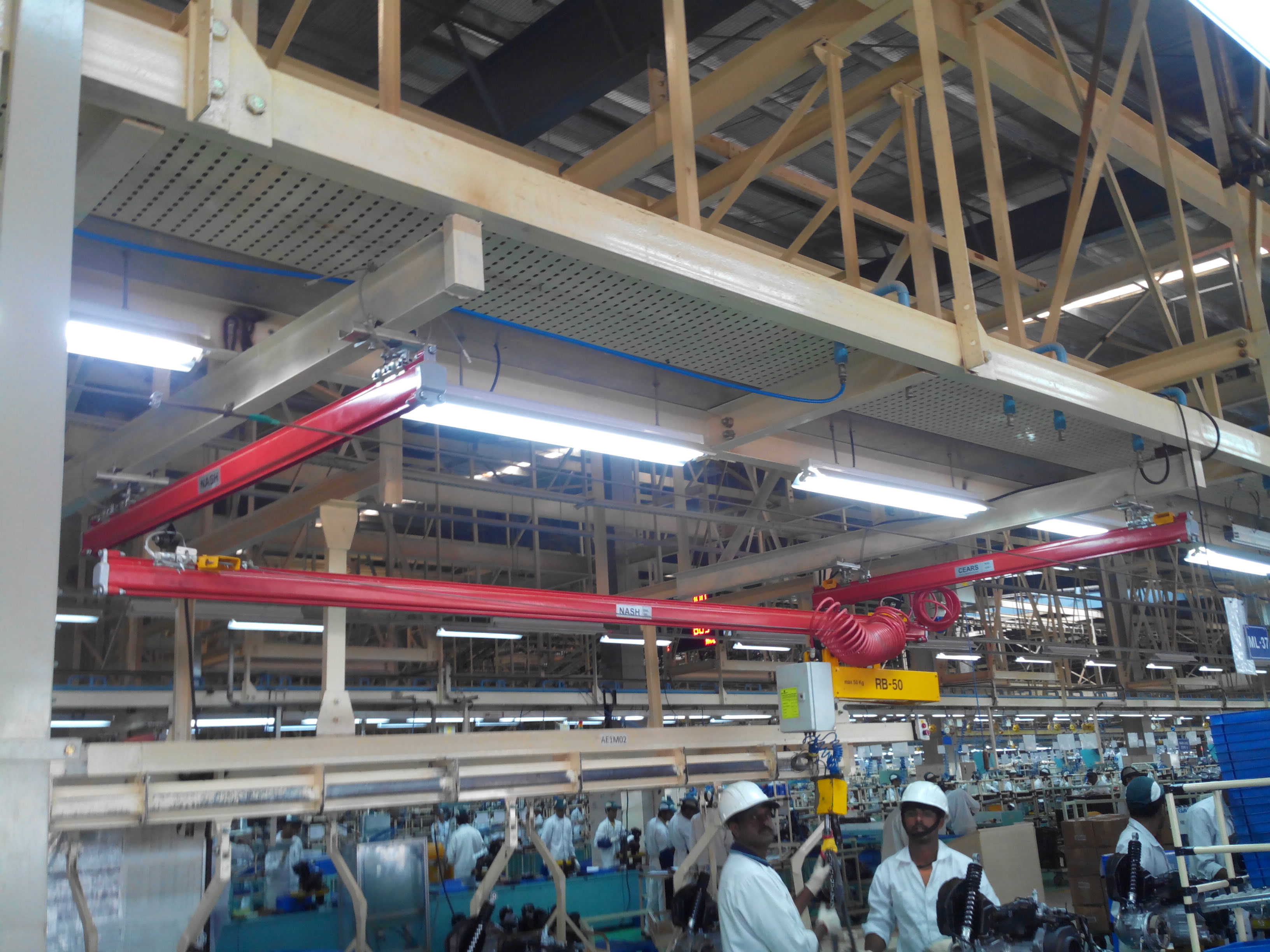

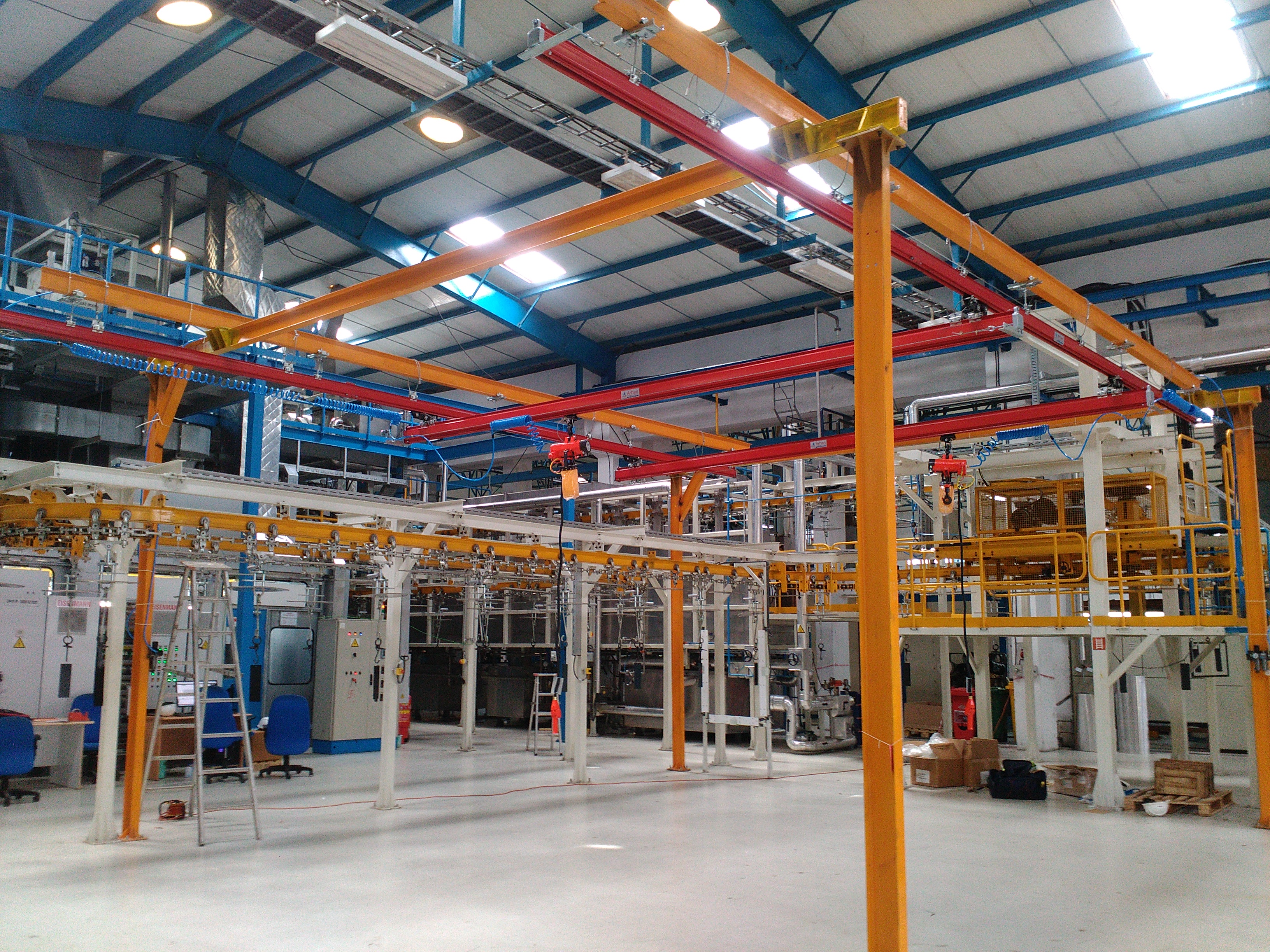

Assembly Line Automobile

yoshida

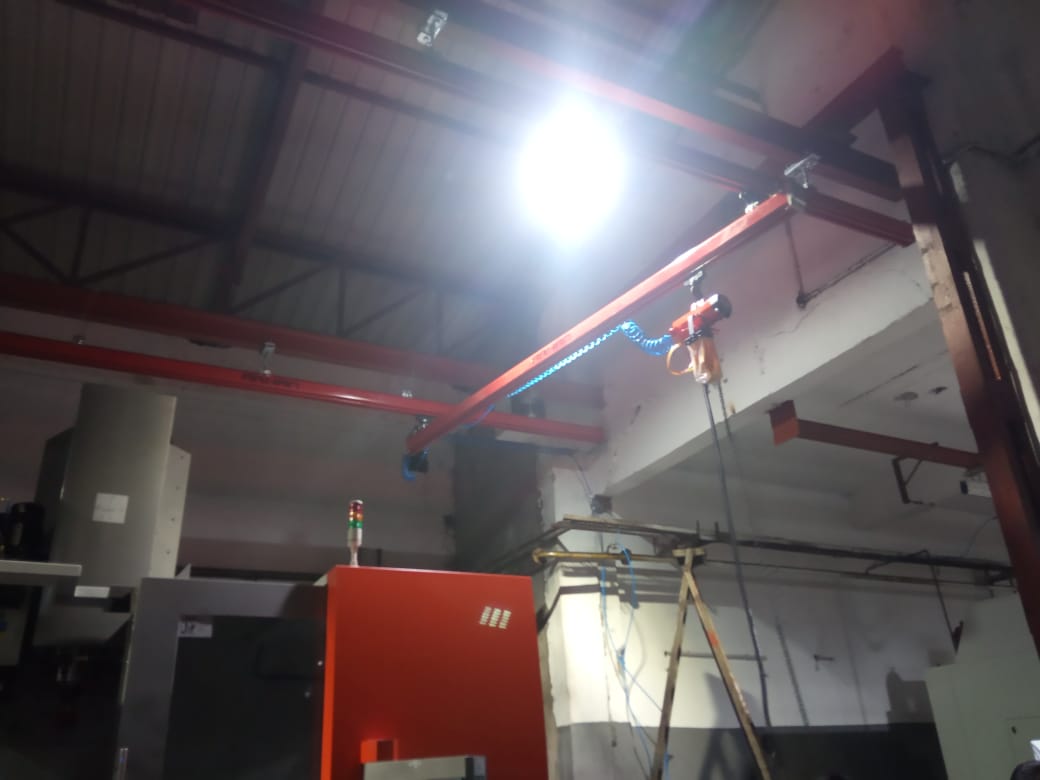

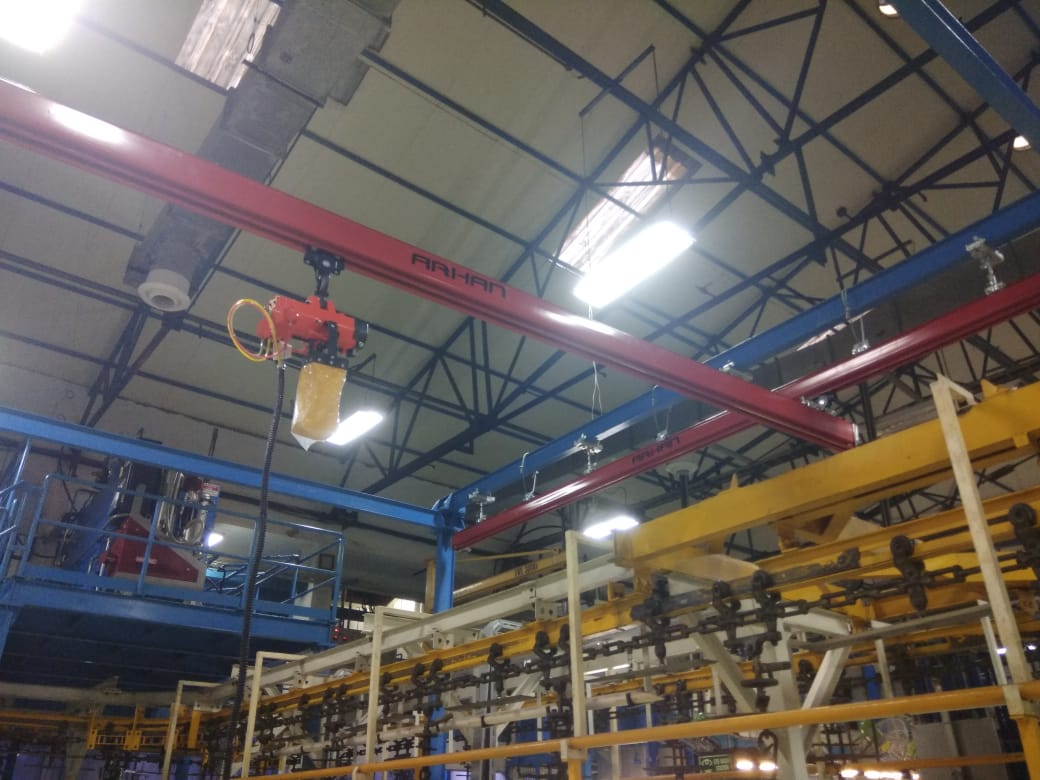

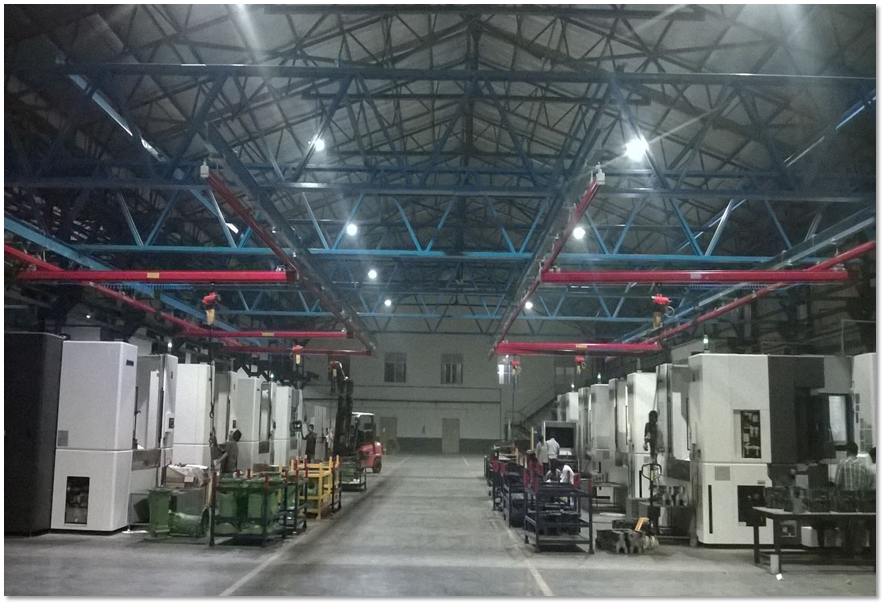

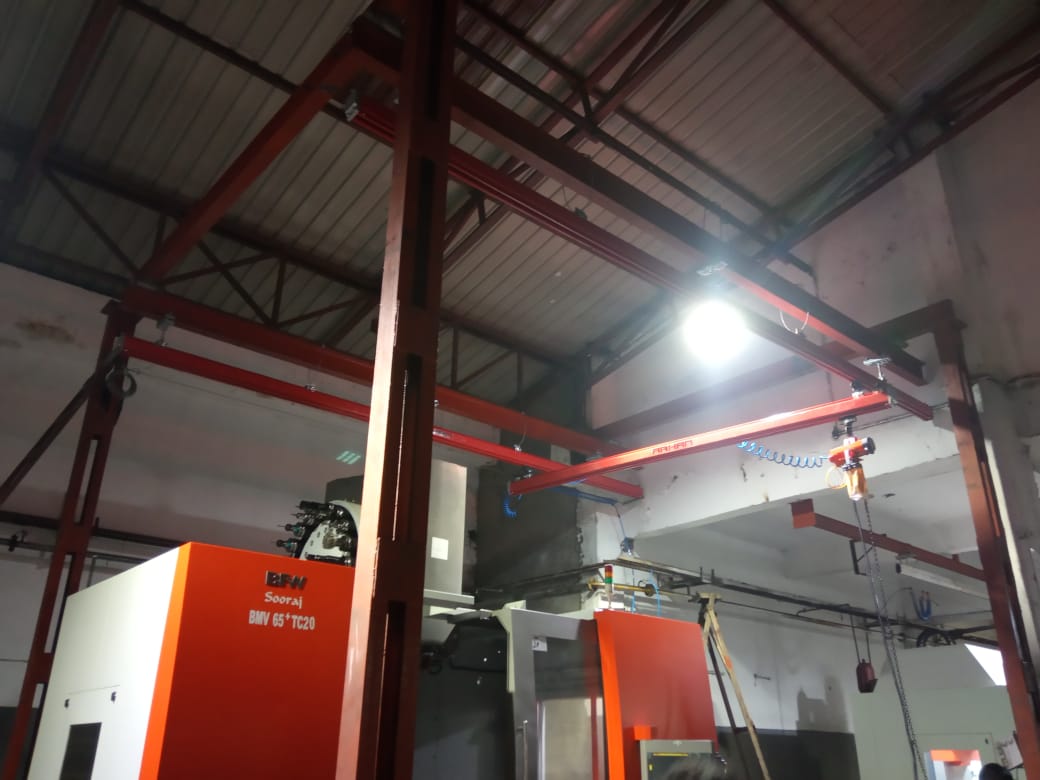

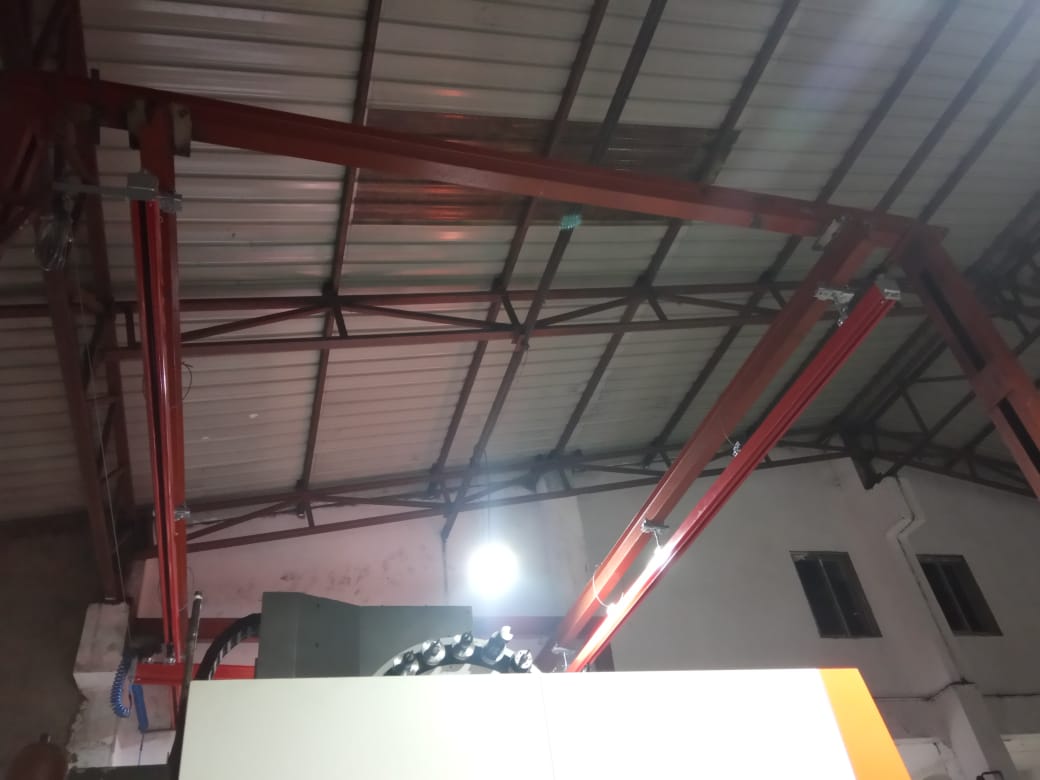

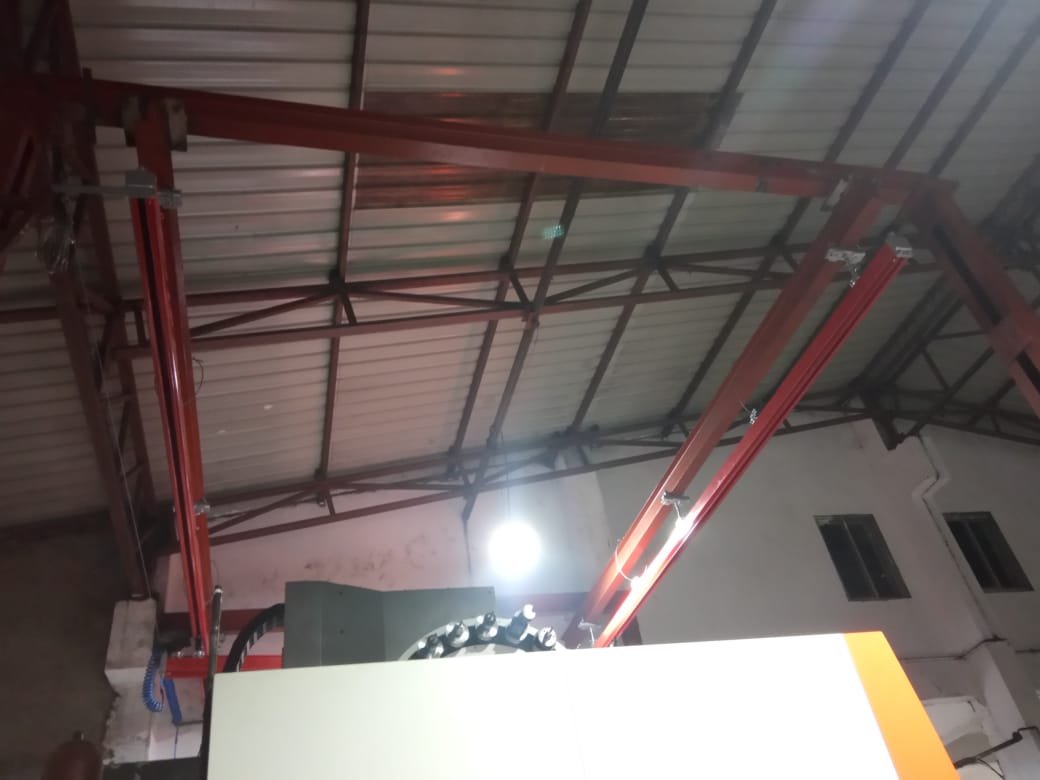

Loading and Unloading Station CNC Machine Center

yoshida
Page top
yoshida

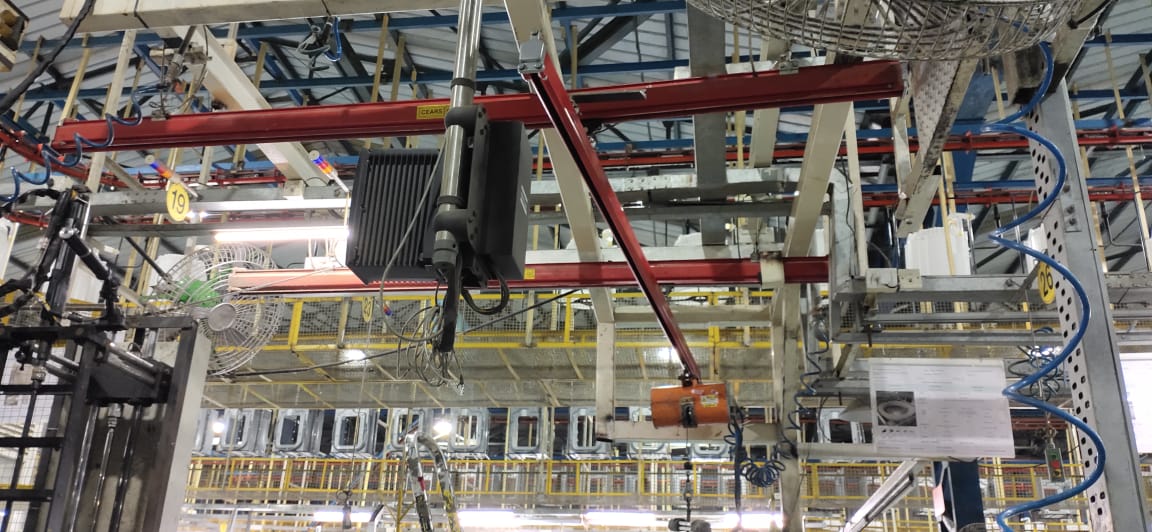

Storage Area General Industries

yoshida

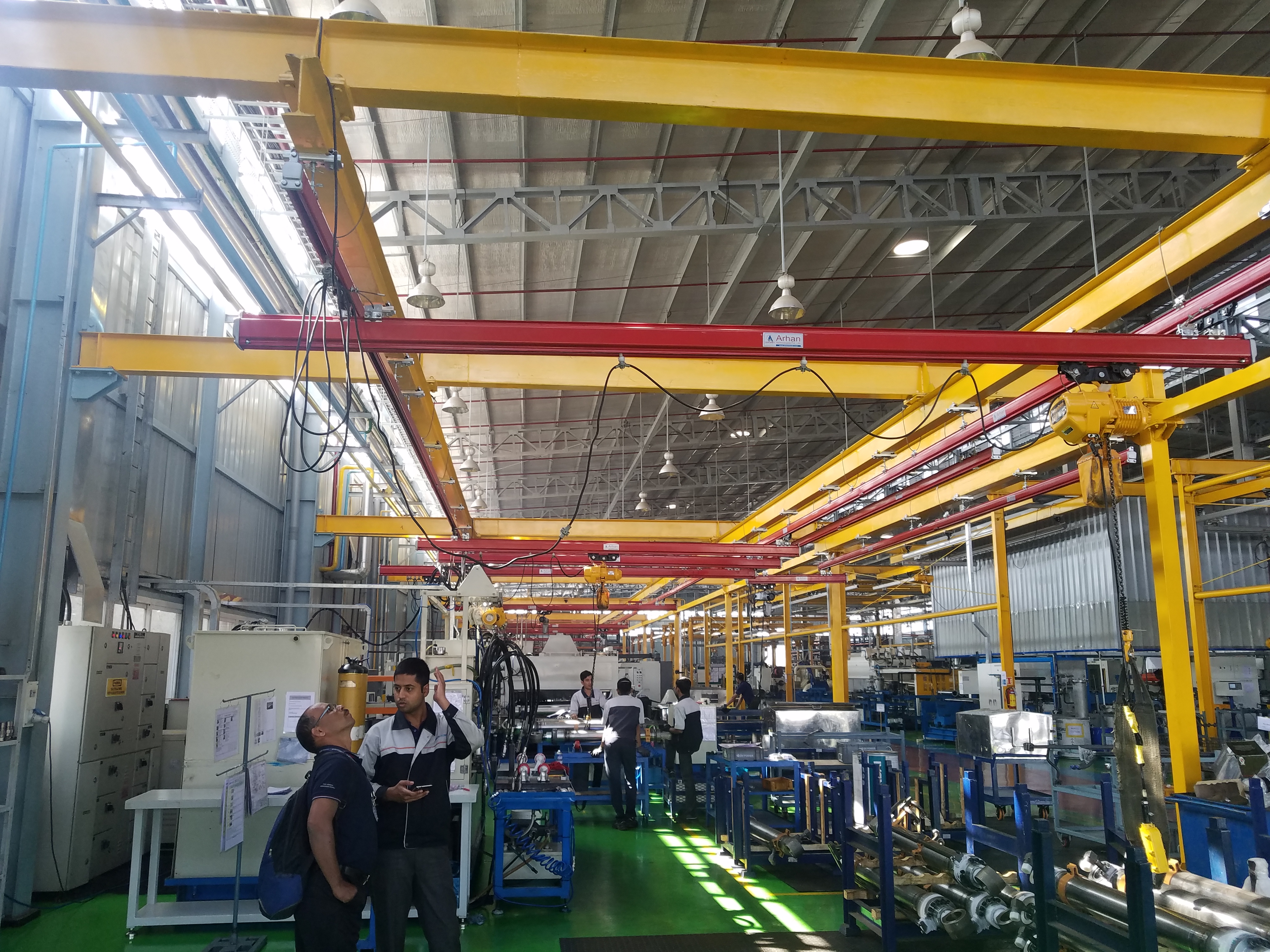

Child Part Feeding Heavy Industries

yoshida
Page top

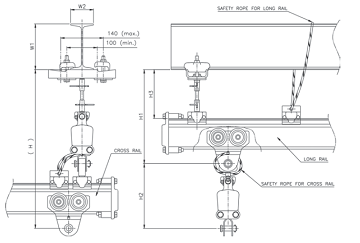

Safety

All Rails are tested with 4 to 1 Factor of safety Safety Cable to provide extra safety
End Stops to ensure end position of travel
Anti collision stoppers to avoid hitting of two Cross Rails/ Hoist.
Inspection Bracket to check Trolley condition and Installation of New Cross Rail. All bolts are made of
high tensile steel and lock nut to avoid losing while working

yoshida
yoshida
Page top

PART DETAILS & ADVANTAGES

Hangers

Adjustable hangers All Hangers are adjustable type to maintain zero level form ground
High Tensile Steel Hangers are made of High Tensile steel to get high durability, strength and absorption of Jerks
Low Head Room Optional Hangers are available for low head room application
Flexible Hangers Flexible hangers allow pendulum type operation to achieve highest flexibility for cross rail movement.

yoshida
yoshida
Page top

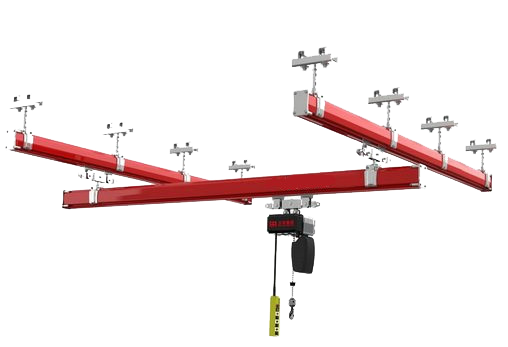

End Truck and Trolley

Ergonomic End Trucks Best suited for offset load lifting
WheelsSelf Lubricated polymer wheels for smooth operation and allow maintenance free long life

yoshida
yoshida
yoshida
Page top

Arhan Ceiling Supported Rail system is ideal for movement of load to multiple stations and achieves high productivity and fatigue free operation to user with minimum Obstruction. Arhan rails are available in Steel and Aluminium enclosed rail profiles

PART DETAILS & ADVANTAGES

Arhan Ceiling Supported Rail system is ideal for movement of load to multiple stations and achieves high productivity and fatigue free operation to user with minimum Obstruction. Arhan rails are available in Steel and Aluminium enclosed rail profiles with 4 variants, capacity upto 2000Kgs. Light weight Trolleys are designed to achieve extremely low friction and maintenance free operation.

yoshida
yoshida
Page top

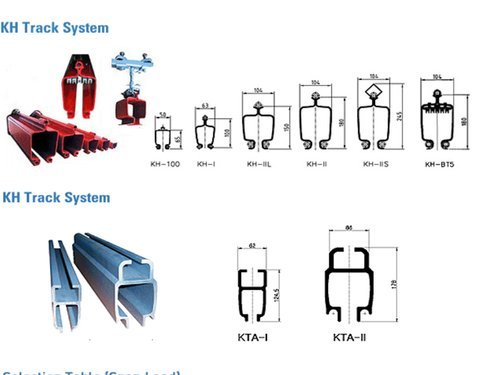

Cold rolled profile for smooth running Available in Straight and curved profile Anodized and corrosion resistance

No Lubrications Required Easy to Installation and alignment Fast Lead Time

yoshida

STEEL RAIL

yoshida

CURVED RAIL

yoshida

ALUMINUM RAIL

yoshida
Page top

    Arhan Advantages

  1. Total Solution
  2. Design Center
  3. Cost Effective
  4. Line Study
  5. Production Study

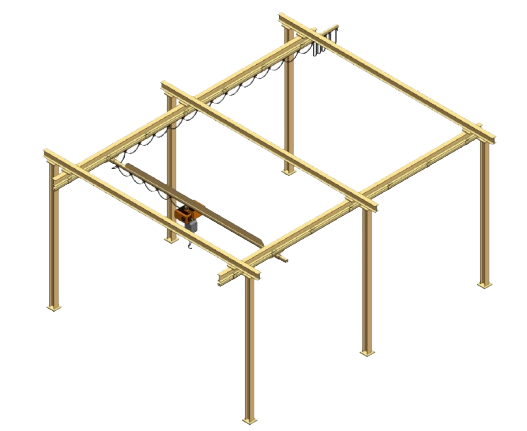

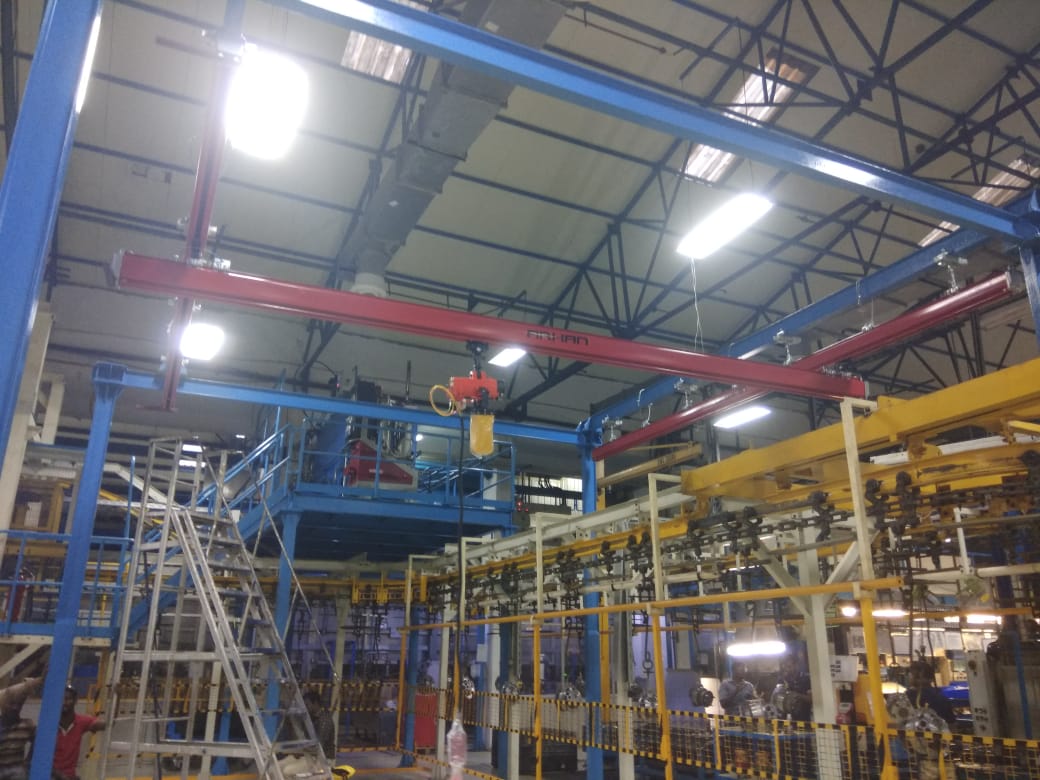

Over Head Structure

Arhan has full drawing, design, Installation and Service team available to offer full material handling solution to customer including overhead structure and gripper. This gives customer, single window solution for all their needs.

yoshida
yoshida
Page top

Enquiry Form for Rail System Structure


System Capacity Required (Kgs)
Product Weight (Kgs)
Gripper Required Yes/No
Long Rail Length / Travel (Mtr)
Cross/ Bridge Rail Length/ Travel (Mtr)
No of Cross/ Bridge Rail Required
Hoist (Pneumatic/ Electrical)
Overhead Structure availability Yes/No
I Beam Flange Width

Enquiry Form for Over Head


Capacity required
Long I Beam (Mtr)
Cross I Beam (Mtr)
Obstruction (If any)
Under Clearance Height Required (Mtr)
Total Height Available at site for Structure Installation (Mtr)
